Vertical Vacuum Packaging Machine
INQUIRY
Feature
Function:
Suitable for vacuum packaging for all kinds of food, meat products, marine food, vegetable and fruits, pickles, snacks food, medical products, electrical component, hardward, ect.
Parameter
| Max Packaging Speed | 5-25bags / min |
| Bag Size | (Side width) 40-80mm, (Front width) 50-120mm, (Bag length) 50-200mm |
| Type of Bag Making | Gusseted stand bag, vacuum bag |
| Measuring Range | 150-1600ml |
| Film Wide Range | 200-420mm |
| Film Thickness | 0.08-0.13mm |
| Air Consumption | 0.8Mpa |
| Vacuum Degree | More than 90 kpa |
| Voltage | 2.2KW / 220V 50Hz |
| Dimension | L1180 * 1950 * 2900mm (With turn table) |
| Weight | 750kg |
| Film Outer Diameter | Max. 400mm |
Optional

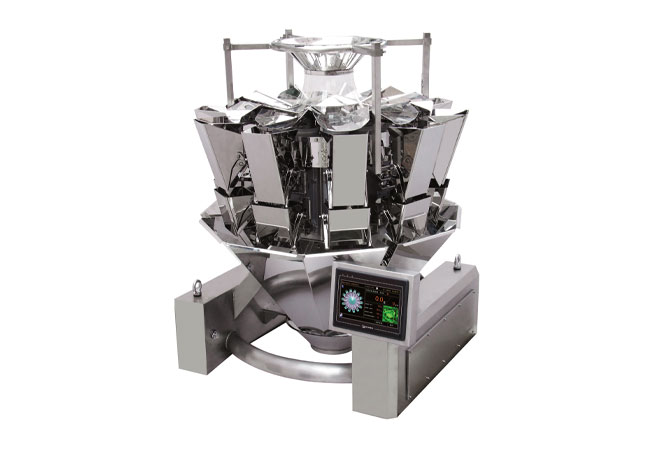

10 Heads Weigher

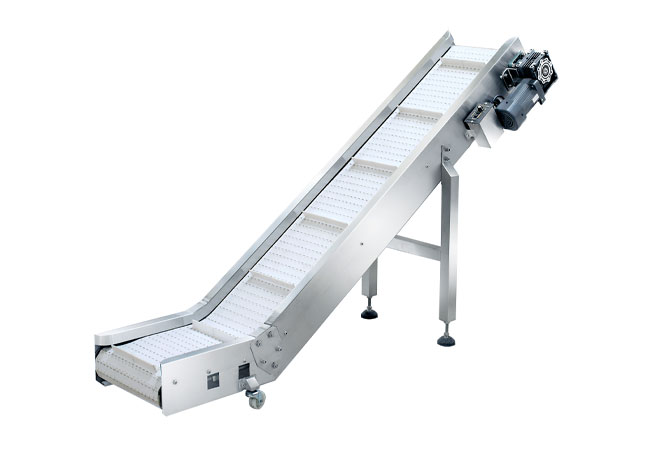

Finished Product Conveyor

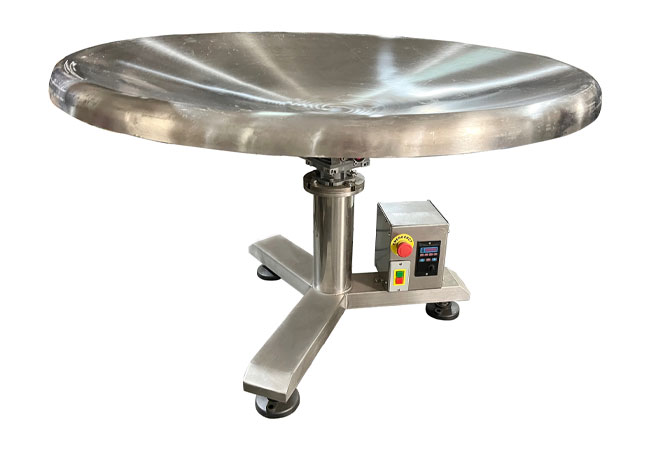

Round Turn Table

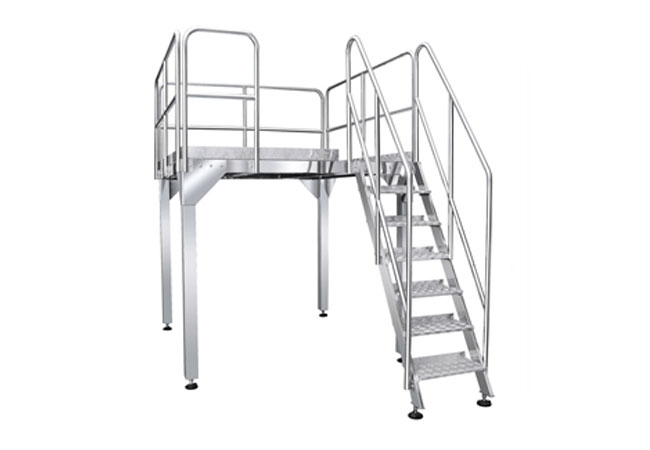

Supporting Platform

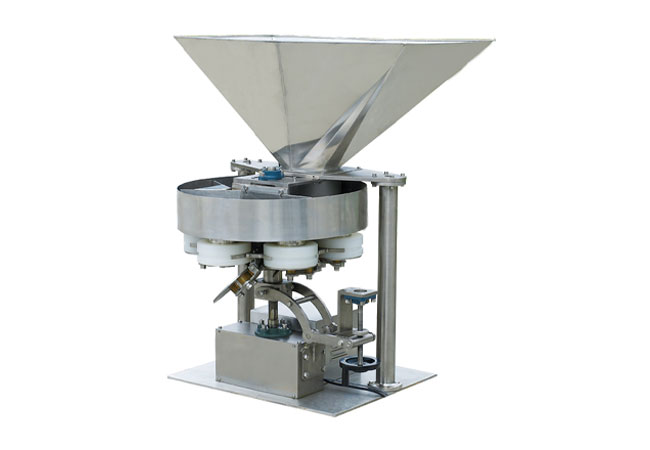

Volumetri Cups Filler

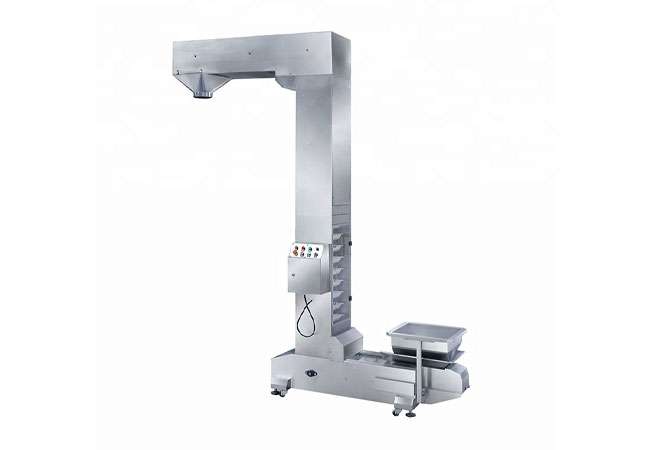

Z-Bucket Elevator
