Pillow Bag Powder Packaging Machine with Auger Filler CB-VP52A
Feature
A. Low cost high gain, high speed and efficiency.
B. Famous brand PLC control system, large touch screen, convenient to operate.
C. Servo film pulling system, pneumatic or servo horizontal sealing.
D. Minimize the loss with complete automatic warn protection function.
E. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
Parameter
|
Items |
Content |
|
Capacity |
30-70bags / min (for empty bag) |
|
Bag Size |
W: 100-250mm L: 80-350mm |
|
Bag Type |
Pillow bag, Gusseted bag |
|
Film Pulling Belt |
Double -belt pulling film |
|
Max Packaging Film Width |
Max, 520mm |
|
Thickness of Film |
0.04-0.09mm |
|
Air Consumption |
0.8Mpa 0.3cmb / min |
|
Main Power / Voltage |
3.4KW, 380V / 220V 50Hz / 60HZ can follow to customer’s electric |
|
Dimension |
L1560 * W1160 * H1530mm |
- Packing Weight: 10-5000G (The screw attachment is to be changed)
- Weighing Range: 1-6000G (Resolution is 01g)
- Filling Accuracy:
- Package Weight: ≤ 100g, with an error ≤ ±0.5-1g
- Package Weight: 100~1000g, with an error ≤ ±0.3-1%
- Package Weight: ??000g, with an error ≤ ±0.25-0.5%
- Filling Rate: 10-50bags / min
- Power Supply: 3P / 380V (1P / 220V according your requirement) 50-60Hz
- Total Power: 1.9KW
- Total Weight: 250KG
- Overall Dimensions: 800 × 1100 × 2150MM
- Hopper Volume: 50L
Optional
Auger Filler
Finished Product Conveyor
Round Turn Table
Screw Conveyor
Video
Download

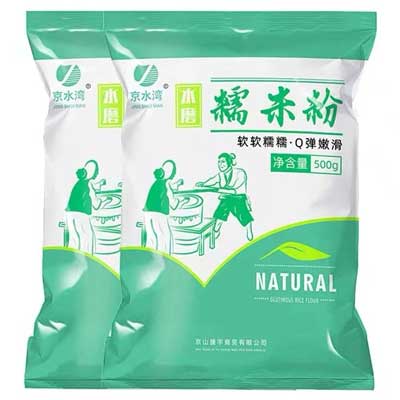

Sample
