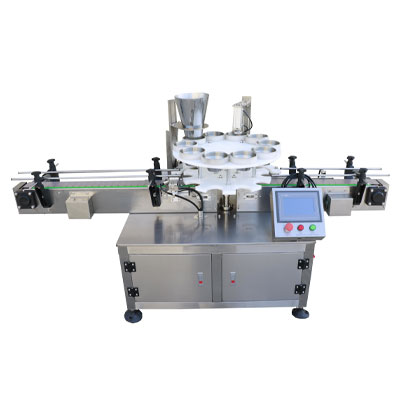

Full Auto Can Packaging Line

Feature

The overall appearance material is mainly made of stainless steel 304, with a thickness of 1.5mm.
The chuck and receiving hopper need to be replaced to replace the blanking caliber. The replacement and debugging time is about 10 minutes.
To change the height of the jar, no need to change accessories, just shake the hand wheel, the range is controlled by 50-200mm.
The turntable type receiving and filling machine is mainly used in combination with a combination scale. For the situation of small can mouth and large materials, the filling turntable has multiple stations to buffer the synchronous vibration during feeding, which can increase the filling speed and prevent material blocking.
The operation of this machine requires an air compressor, please purchase it separately, and an air compressor above 3KW is required.

Model	CB-JL130
Control Panel	7 inch LCD monitor
Filling Diameter	φ40~φ130mm, applicable height 50~200mm (customized according to the can size)
Turntable Station	10 stations (the design may be changed according to the actual situation)
Speed	30-50 cans per minute
Power	AC 220 V, 50Hz, 0.95KW
Air Consumption	about 2 cubic meters per minute 0.6-0.8Mpa, air source or air pump is used as auxiliary equipment, and relevant auxiliary equipment needs to be prepared by yourself.
Dimension	2200 * 1100 * 1500mm
Height of the Conveyor Belt from the Ground	900mm
Width of the Chain Belt	114mm (the size can be customized if required)
Weight	Net weight 200kg
