4 Heads Linear Weigher Filling Packaging Machine CB-VP42

INQUIRY

    4 Heads Linear Weigher Filling Packaging Machine CB-VP42

    Feature

    • Low cost high gain, high speed and efficiency.
    • Famous brand PLC control system, large touch screen, convenient to operate.
    • Film drawing down system controlled by servo motor.
    • Minimize the loss with complete automatic warn protection function.
    • It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
    • The Way of Bag Making: The machine can make pillow-type bag and standing bag according to customer’s requirements.

    Feature of 4 Heads Linear Weigher

    It is suitable for tiny granule products such as sugar, salt, seed, rice, sesame, gourmet, coffee beans and seasonings, etc.

    Main Features

    • Original program can be restored.
    • Piece counting function.
    • IP65 certificate.
    • Unqualified weight reject.
    • Step motor angle can be set according to different product.
    • 99 program can be preset.
    • Each hopper can be a single weigher.
    • Product mix function is available.

    Special Features

    • Modular electronic system makes function expanding and maintenance easier and at lowest cost.

    Parameter

    Items

    Content

    Packaging Speed

    40-60 bags / min ( for empty bag making)

    Bag Size

    (L) 60-300 mm (W) 60-200 mm

    Bag Making Mode

    Pillow bag, gusset

    Max Packaging Film Width

    420 mm

    Thickness of Film

    0.04-0.09 mm

    Air Consumption

    0.8 Mpa 0.5 cmb / min

    Main Power / Voltage

    2.2 KW single phase 220V / 3 phase 380V 50 / 60 Hz

    Dimension

    L1530 * W970 * H1600 mm

    The Weight of Switchboard

    450 kg

     Weighing Range

    10-2000g (related to the density)

     Weighing Accuracy

    ±0.2-1g

     Max. Weighing Speed

    10-50 WPM

     Hopper Volume

    1000ml

    Control System

    MCU

    Operation Panel

    7 inch touch screen

    Power Supply

    AC220V ±10%, 50Hz (60Hz) 1KW

     Machine Size

    1500(L) * 1200(W) * 1115(H)

     Net Weight

    198KG

    Packing Weight

    235KG

    Optional

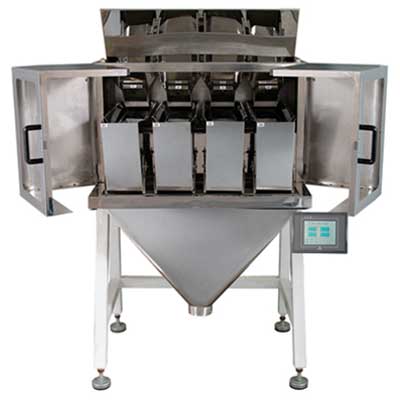

    4 Heads Linear Weigher

    4 Heads Linear Weigher

    Finished Product Conveyor

    Finished Product Conveyor

    Round Turn Table

    Finished Turn Table

    4 Big Bucket Elevator White Background

    Bucket Elevator

    Z Type Conveyor

    Z-Shaped Feeder
