3/4 Side Bag Vertical Form Fill and Seal Machine CB-VS36
INQUIRY
Feature
Technical Advantages
- Max bag width is 360mm.
- The horizontal sealing using the new anti-folding device, easy to adjust, stable performance.
- Servo vacuum film pulling system makes the machine high quality, work stable & longer life.
- Advanced automatic correction system, tracking and positioning accuracy.
- New vertical sealing structure is easy to adjust & use.
- Improved former beautifully designed and the best manufacturing process.
- Fill pulling fram is simple design, easy to adjust the eye mark and install the film.
- Convenient for user operate the machine by the separate film installation system of the film pulling frame.
Parameter
| Items | Content |
| Model | VS36 |
| Capacity | Maximum 40bags / min |
| Bag Size | (L) 60-180mm (W) 50-260mm |
| Bag Type | 3 / 4 sides sealing |
| Max Packaging Film Width | Max, 360mm |
| Thickness of Film | 0.04-0.09mm |
| Air Consumption | 0.8Mpa 0.3cmb / min |
| Main Power / Voltage | 3.3KW 220V 50Hz / 60Hz |
| Dimension | L1140mm * W1460mm * H1470mm |
Optional
Liquid Pump
Finished Product Conveyor

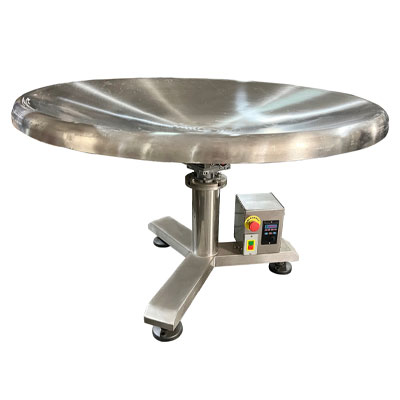

Round Turn Table
Video
Download

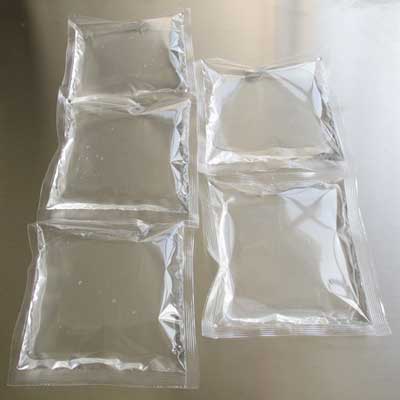

Sample
